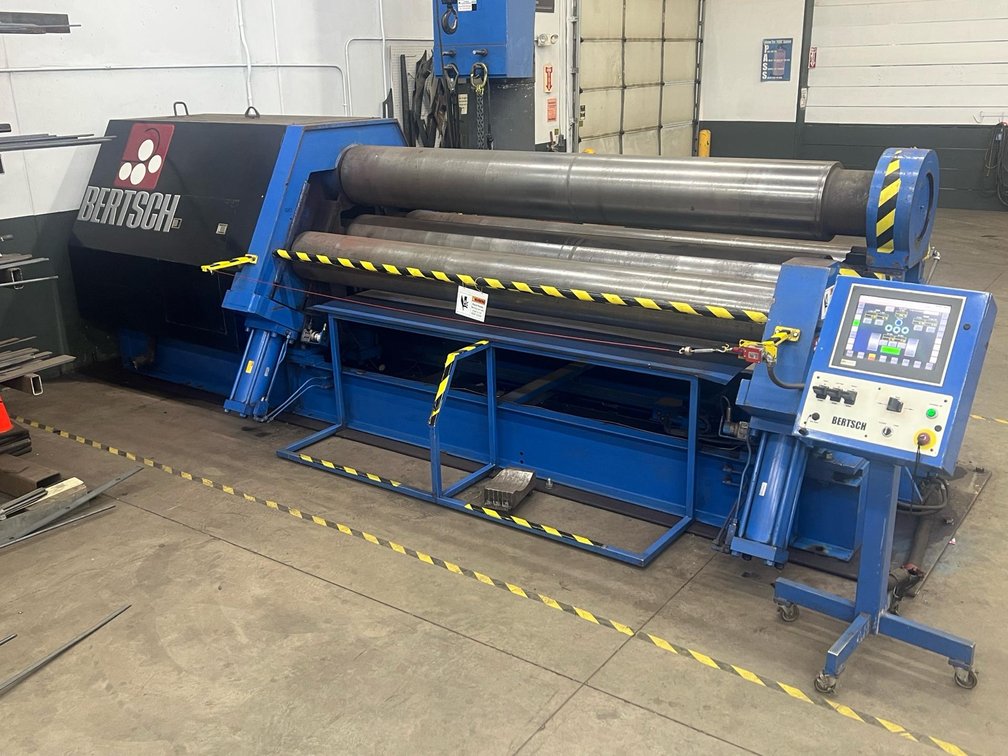

#77 • 2012 Bertsch 75-10 4 Roll Double Pinch Plate Roll 3/4" x 120"

Part of By Court Ordered Receiver: General Construction Services (timed auction by Bid-2-Buy)

High bid $91,500.00

Status: Sold

Year: 2012 Make: Bertsch Model: 75-10 Type: 4 Roll Double Pinch Plate Roll Serial Number: M-11079 Roll Capacity: Nominal: 0.75″ x 120″ Maximum: 0.865″ x 120″ @ 70% Length: 1.024″ x 84″ @ 30% Length: 1.26″ x 36″ Maximum Rolling Length: 120 Minimum Rollable Internal Diameter: @ 0.563″ Thickness: 16.9″ (Single Pass) @ 0.75″ Thickness: 23.5″ (Multiple Pass) Roll Diameter: Top and bottom: 15” Side: 11” Motor, main hydraulic: 20 HP Electrics: 460V/3Ph/ 60Hz Approx. Weight: 36,000 Lbs. EQUIPPED WITH: Bertsch / Megafab Control with Graphics (Beckhoff) Hydraulic drop end Hydraulic Roll Adjustment Variable Speed Rolls Flat Floor Mounted Self Contained Hydraulics 20 hp Main Hydraulic Motor Plating For Pit Mounting If Desired Inventory #: 1000
